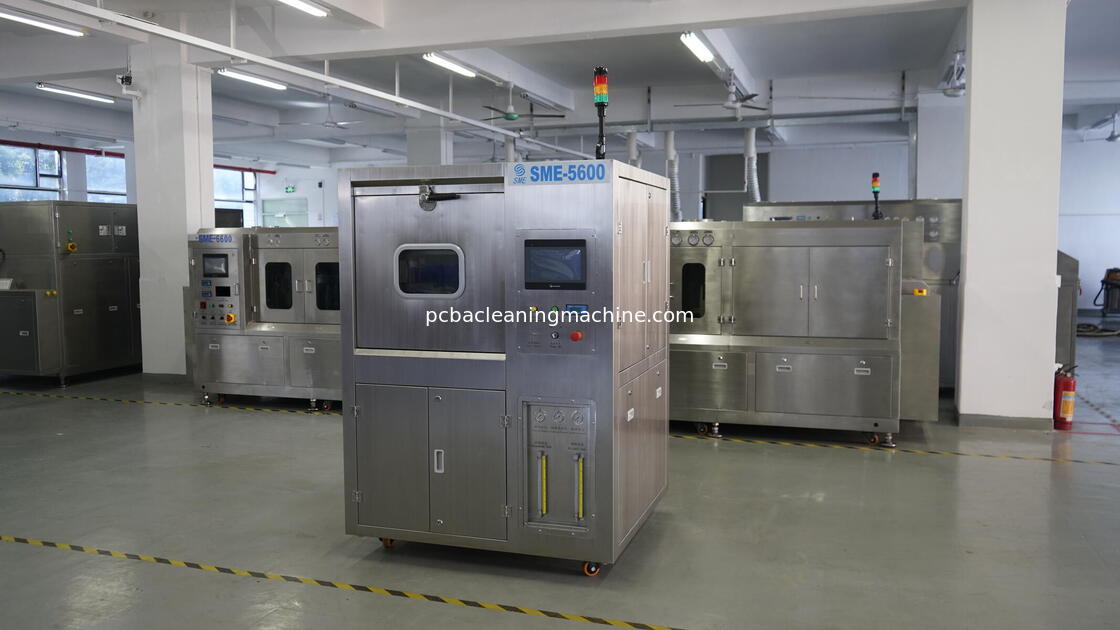

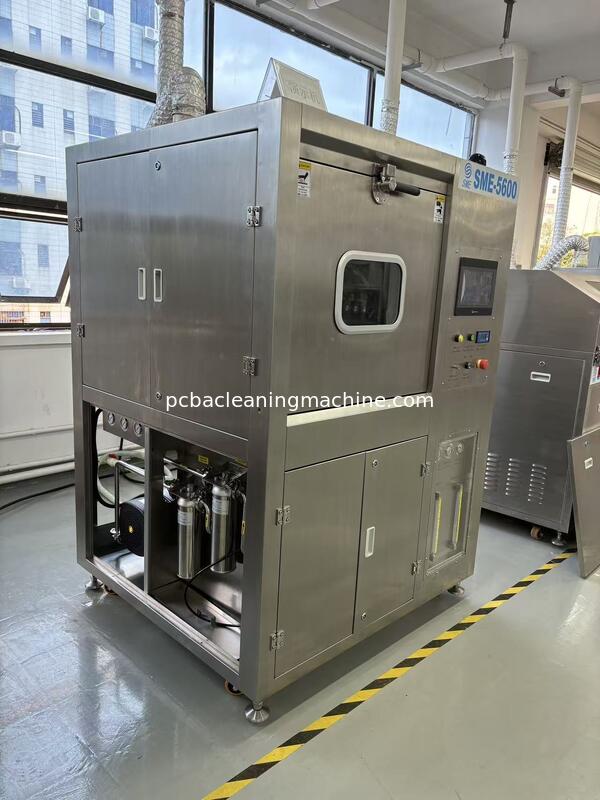

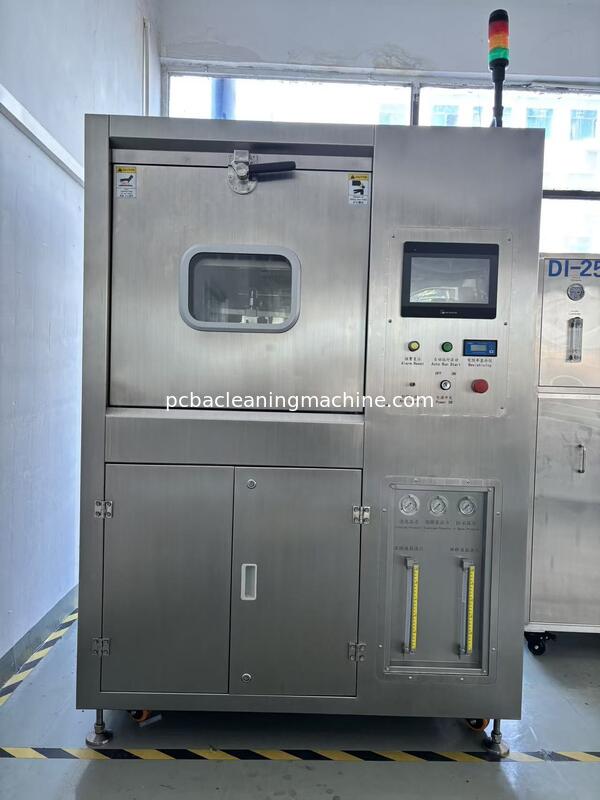

PCB Cleaning Machine Featuring PCB Size 330x250mm As Max Simple Operation and Non Inline Type Ideal for PCB Maintenance

Product Description:

The PCB Cleaning Machine is an advanced and efficient solution designed specifically for removing stains on printed circuit board assemblies (PCBA) using a chemical cleaning agent. Engineered to meet the demanding requirements of modern electronics manufacturing, this machine ensures high cleanliness levels, simple operation, and large output capacity, making it an indispensable tool for production lines focused on quality and productivity.

One of the standout features of this PCB Cleaning Machine is its robust gas pressure range, operating efficiently between 0.4 to 0.6Mpa. This pressure range is optimized to facilitate thorough cleaning by ensuring the chemical cleaning agent penetrates and removes stubborn stains and residues on PCBA surfaces without causing any damage. This balance of pressure is critical for maintaining the integrity of sensitive electronic components while achieving exceptional cleanliness.

The machine is designed to accommodate stencil sizes up to L610*W610*T100mm, providing great versatility in handling a wide range of PCB sizes and stencils. This capability ensures that manufacturers can clean larger panels or multiple smaller ones simultaneously, improving throughput and reducing downtime. Complementing this, the wash basket size measures L610*W560*H100 (mm) with 2 layers, allowing two separate batches to be cleaned at once, effectively doubling the cleaning capacity and enhancing operational efficiency.

In terms of usability, the PCB Cleaning Machine is remarkably user-friendly. Its design emphasizes simplicity in operation to minimize the need for extensive training or technical expertise. Operators can easily set the wash time, which ranges from 5 to 20 minutes, depending on the degree of contamination and the cleaning requirements. This adjustable wash time feature ensures flexibility and precision in the cleaning process, catering to diverse production needs and maintaining high standards of cleanliness.

The machine's construction features the original color of stainless steel, which not only provides a sleek, professional appearance but also ensures durability and resistance to corrosion from the chemical cleaning agents used. The stainless steel body contributes to the machine’s long service life and low maintenance requirements, making it a cost-effective investment for electronics manufacturers.

Power supply and air supply integration is another crucial aspect of this PCB Cleaning Machine. It utilizes a reliable power supply to maintain consistent operation, while the air supply supports the gas pressure system that drives the cleaning process. This seamless integration ensures stable performance, reduces the risk of interruptions, and enhances the overall efficiency of the machine.

Key selling points of this product include its simple operation, which reduces labor costs and minimizes the risk of operator error; high cleanliness levels, which improve product quality and reduce rework or scrap rates; and large output capacity, which boosts production efficiency and throughput. These advantages make the PCB Cleaning Machine an ideal choice for electronics manufacturers aiming to optimize their cleaning processes and maintain competitive production standards.

In summary, the PCB Cleaning Machine combines advanced technology, practical design, and reliable performance to deliver a superior cleaning solution for printed circuit board assemblies. Its optimized gas pressure range, accommodating stencil size, dual-layer wash baskets, adjustable wash times, durable stainless steel construction, and integrated power and air supply systems all contribute to its effectiveness and user-friendliness. Whether you are looking to improve cleanliness, increase output, or simplify your cleaning operations, this machine offers a comprehensive and dependable answer to your PCB cleaning needs.

Features:

• Product Name: PCB Cleaning Machine
• Machine Type: Automated Cleaning Equipment
• Model: SME-PLC560
• Specification: Maximum PCB Size 330x250mm
• Cleaning Fluid Capacity: 60CC
• Gas Pressure Range: 0.4-0.6Mpa
• Concentrate liquid tank capacity: 30L
• Lower operating costs: built-in filter allows dilution to be reused repeatedly
• Uses compressed air blow method at the end of the cleaning process to blow residual detergent off from the pipeline and the pump
• Effectively saves 50% of dilution by removing residual detergent

Technical Parameters:

Applications:

The Automatic machine equipment for cleaning PCBA, model SME-5600L, is an advanced PCB Cleaning Machine designed for efficient and precise cleaning of printed circuit board assemblies. Manufactured in China and certified with CE, this high-quality machine is ideal for various product application occasions and scenarios where cleanliness and reliability of PCBA are critical.

This machine is particularly suitable for electronics manufacturing companies that require thorough cleaning of PCBA with small batch production or multi-specification boards. Its ability to handle PCB sizes up to 330x250mm and thickness ranging from 0.5 to 3.0mm makes it versatile for different types of circuit boards. The rinse times can be adjusted from 1 to 99 cycles, allowing customization based on the cleaning requirements of different PCBA types and contamination levels.

With a machine size of L1300*W1200*H1850(mm), the SME-5600L is compact enough to fit into various production environments without occupying excessive floor space. This makes it perfect for small to medium-scale production lines where space optimization is essential. Although it is not an in-line type machine, its design facilitates easy integration into existing workflows for batch processing.

The gas pressure range of 0.4-0.6Mpa ensures efficient cleaning performance, providing the necessary pressure to remove flux residues, solder balls, and other contaminants without damaging delicate PCBs. This makes the SME-PC560 model a reliable choice for manufacturers focused on maintaining high-quality standards and reducing defects caused by contamination.

Ideal application scenarios include electronics assembly plants, quality control laboratories, and repair centers where precision cleaning is vital. The machine’s minimum order quantity of 1PCS and a supply ability of 10 sets per month allow flexible procurement to meet different production demands. Packaged securely in a wooden box, it ensures safe delivery within approximately 4 weeks after order confirmation, with payment terms based on T/T.

Priced at USD 38,000.00, this Automatic machine equipment for cleaning PCBA offers excellent value by enhancing cleaning efficiency and consistency. It is perfect for companies aiming to improve product reliability, reduce rework rates, and maintain high standards in electronic manufacturing processes. Whether for small amount, multi-spec PCBA wash or more specialized cleaning needs, the SME-5600L is a dependable solution tailored for modern electronics production environments.

Customization:

Brand Name: Automatic machine equipment for cleaning PCBA, Model Number: SME-5600L, Place of Origin: China, and Certification: CE ensure the highest quality standards for the PCB Cleaning Machine.

This automated cleaning equipment features a comprehensive cleaning process including Cleaning, Rinsing, Air Drying, and Drying to deliver optimal results for your PCBA.

The machine supports PCB thickness ranging from 0.5 to 3.0mm and accommodates PCB sizes up to 330x250mm as max, making it versatile for various PCB specifications.

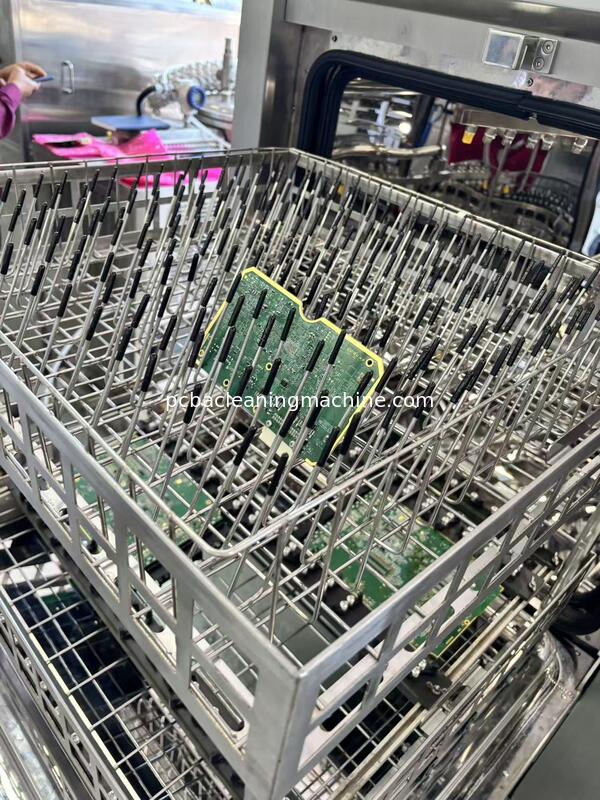

A unique feature of this model is the two layers of wash basket, each layer measuring L610*W560*H100mm, allowing efficient cleaning of multiple boards simultaneously.

The diluent liquid heat temperature ranges from room temperature up to 99℃, ensuring effective cleaning performance while maintaining component safety.

The machine operates with a power supply and air supply system, optimizing the cleaning process for consistent and reliable operation.

With a cleaning fluid capacity of 60CC, the SME-5600L maintains efficient fluid usage and performance.

Packaging details include a sturdy wooden box to protect the equipment during shipment, with a delivery time of 4 weeks after order confirmation.

Payment terms are T/T, with a minimum order quantity of 1PCS, and a supply ability of 10 sets per month, making it suitable for both small and large-scale operations.

The price for this advanced PCB Cleaning Machine is USD 38,000.00, reflecting its high-quality construction and automated cleaning capabilities.

Support and Services:

Our PCB Cleaning Machine is designed to deliver efficient and reliable cleaning performance for printed circuit boards of various sizes and complexities. To ensure optimal operation, please adhere to the recommended maintenance schedule and use only approved cleaning agents compatible with the machine.

For technical support, our team of experts is available to assist with installation guidance, troubleshooting, and routine maintenance procedures. We provide comprehensive user manuals and troubleshooting guides to help you resolve common issues quickly and effectively.

Regular calibration and inspection of the cleaning nozzles and filtration system are essential to maintain cleaning precision and prevent contamination. Replacement parts and consumables are available through authorized service centers to guarantee compatibility and performance.

We offer training sessions and on-site support to help your staff maximize the machine’s capabilities and ensure safe operation. Additionally, software updates and firmware upgrades are periodically released to enhance functionality and address any identified issues.

For warranty service, please refer to the terms and conditions provided at the time of purchase. Our support team is committed to providing timely and professional assistance to minimize downtime and maintain your production efficiency.

Packing and Shipping:

Product Packaging:

The PCB Cleaning Machine is securely packaged using high-quality, durable materials to ensure safe delivery. Each unit is wrapped in protective foam and placed inside a sturdy cardboard box to prevent damage during transit. The packaging also includes user manuals, power cables, and necessary accessories neatly organized within the box.

Shipping:

We offer reliable shipping options worldwide with careful handling to guarantee the PCB Cleaning Machine arrives in perfect condition. Orders are processed within 2 business days and shipped via trusted carriers. Tracking information will be provided to monitor your shipment status. For international shipments, all necessary customs documentation will be prepared to ensure smooth delivery.
